DYNAMITE INTERNATIONAL CORP. (DIC)

Since 1993, Dynamite International Corp.(DIC) has been producing Stencil / PCB cleaning system with its innovative design and development. With sufficient technical expertise, efforts are made in this field to develop air operated Stencil / PCB cleaning equipment to be hazard free and cost effective in operation. The most mature Stencil & PCB Cleaning System in SMT Industry with twin cleaning chambers. Cost Effective, Market leading & designated for use by big manufacturing companies such as Foxconn, Asus,Lite- on, FIC, Acer, MITAC, YHI & Huawei etc.

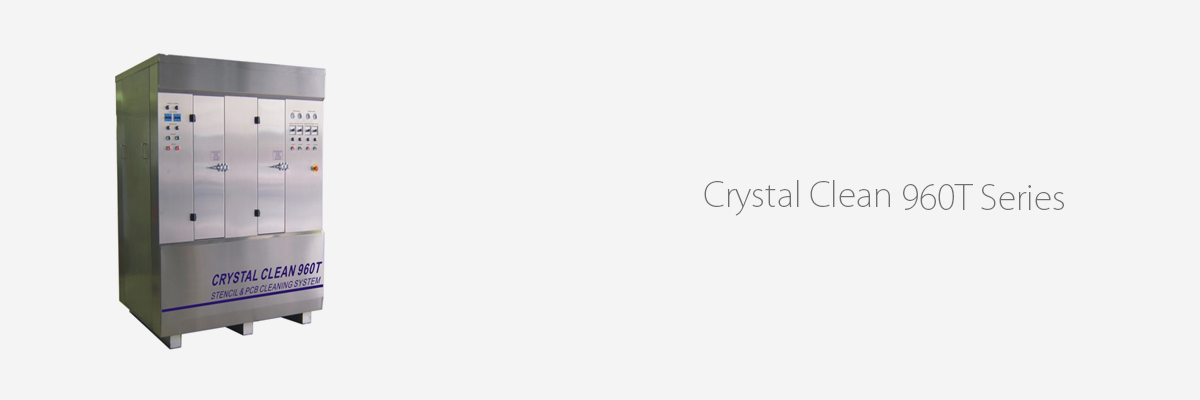

Crystal Clean 960S & 960T Series

The Crystal Clean 960S & 960T is specifically designed for fine pitch printing processes. The Operation of machinery is powered by compressed by air & requires no electricity. The entire cleaning chamber is completely enclosed & sealed to prevent leaks of cleaning solvent vapor to protect the operators from inhaling any potential harmfull gases.

Features

  • Cleaning Efficiency: Twin Rotary Jet Stream Wands with Specially designed jetting nozzles on both sides in the chamber results in excellent washing effect even with tiny apertures of BGA 0.1mm, QFP 0.3mm pitch & 0201 Component.
  • Pneumatic Operation, No electricity required: It ensures the safety & reliability of using any type of alcoholic solvent. Typical cleaning & drying cycles complete within 10 minutes.
  • Unique Solvent Recycling & Filtration System: Keep the solvent reusable by using resin & charcoal to filter flux & organic materials from cleaning solution, it effectively prolongs the solvent life by reducing the consumption & cutting the costs.
  • Lead free: Can be used to clean leaded & unleaded Stencil/PCB at the same time.
  • Equipped with PCB Holder, can be used in both PCB & Stencil.
  • It does not impact the tension of the stencil while ensuring completely clean results.
  • Hardened solder paste left in through hole or flux experienced reflow soldering can thoroughly be cleaned away.
  • One touch operation provides a easy to use operational interface.
  • Maintenance free air driven pump reduces maintenance costs.

Specifications

Model 960S
Dimensions(W x D x H) in mm 1050 x 1350 x 1880
Weight 385 kg
Compressed air required
Standard mode 800L/min,6 bar(X2)
Drying mode 1400L/min,6 bar(X2)
Exhaust Rating 4” diameter stack,20m3/hr minimum(X2)
Stencil Size Max. 29” x 29”
Cleaning Solvent IPA type or Hydrocarbon Solvent

Cleaning Effect

Dual direction spraying washing provides instant low pressured and large volume washing effect

Blow drying at room temprature, causing no stress on stencil

Maintenance free air-driven pump


Specifications

Model 960T
Dimensions(W x D x H) in mm 1801 x 1305 x 2053
Weight 591 kg
Compressed air required
Standard mode 800L/min,6 bar(X2)
Drying mode 1400L/min,6 bar(X2)
Exhaust Rating 4” diameter stack,20m3/hr minimum(X2)
Stencil Size Max. 29” x 29”
Cleaning Solvent IPA type or Hydrocarbon Solvent
