ESSEGI

Storagesolutions is a department of Essegi System Service Ltd. and was established in 2006. The need to manage the material for electronics production in the most efficient and rapid way has given rise to what is today the leading production in the management of electronic components. There are to date (September 2016) more than 500 installations around the world, which make Storagesolutions a synonymous of high technology made in Italy.



Speed Without Precision: A Cost For The Company

The new Pick & Place technology is more and more oriented to the increase in speed of assembly. Today you can get to 65,000 components per hour. But a fast assembly, without control of supply, may likely upset production. Defective parts, waste of time, lack of components, decreased productivity, are the consequences of poor management of the assembly phase, which can be very costly to a company.

Intelligent Stores By Storage Solutions: Guarantee Of A Fast And Accurate Supply

The productivity of the Pick & Place process increasingly depends on the reduction to zero of errors and waste, without sacrificing speed Storagesolutions intelligent stores were born after 30 years of experience in the electronics field. It is a solution based on advanced technologies and updated techniques to optimize time and efficiency of the production process. In this way the procurement and setting up of the machines are quick, precise and functional: at zero errors and at the highest speed.

ISM system: management and total control of reels and components

More benefits, more competitiveness.

The ISM system is the technological heart of the automatic and semi-automatic stores by SorageSolutions. A software for management, verification and tracking, that ensures total control of each component and the best performance in the process of procurement.

All ISM benefits, which allow you to increase your competitiveness:

  • Set up of Pick & Place: over 50% less time than traditional systems.
  • Store under absolute control: certainty at all times on the availability of the necessary components before starting any job order.
  • Recognition precise and accurate in the number of components in stock.
  • Analysis and calculation of the need of components for future productions.
  • Ability to manage the company's outside warehouses immediately.
  • Traceability of mounted components.
  • Possibility of storage in a temperature and humidity controlled environment.
  • Temperature and humidity traceability for any single component.
  • Barcode (1D/2D) code scan function.
  • Two stage conveyor.
  • Dual Lane Conveyor System.
  • Heavy duty conveyor.
  • Material Level Detection.
  • Pallet return conveyor (Underneath for OMO concept).
  • 3 gallon material tank(Stainless Steel)
  • LA-W30 fan shape atomized spray valve

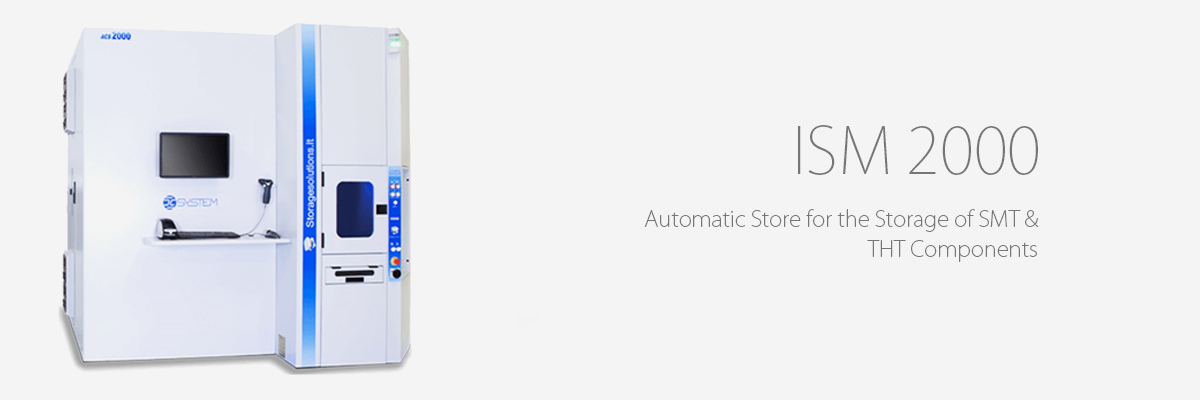

Automatic store for the storage of SMT and THT components

Automatic store dehumidified for storage of SMT and THT electronic components. Maximum capacity: 2059 reels.

Ideal for large numbers

Designed specifically for optimal management of large reels. Ideal for companies that have a high number of reels to handle.

Multifunctional, many dimensions

Multiple uses: for reels and microprocessors trays. Many dimensions: you can enter reels 7" and height from 8 to 16mm, or reels 13" and 15" and height up to 72mm.

Patented Multi-Output: it charges and discharges up to 27 reels simultaneously. Fast exit: exit system and ultra-fast extraction of reels in record time. Upload and download: up to 27 reels simultaneously.

Fast exit: to extract the rolls also during the loading / unloading stage.

The multiple output Fast Exit allows great flexibility of management. For example, when, in the process of loading / unloading, one urgently needs a reel and has no time to wait for the operation terms.

The store can interrupt the loading / unloading operation, providing priority component of which one is in urgent need, and then continue again with the loading / unloading stage.

Humidity control module plug and play.

Like all ISM models, ISM 2000 can also be equipped with the humidity control module. The storage environment is always under control and the moisture level is constantly below 5%.

Accurate calculation of the "Floor Life"

Thanks to the ISM software, the expiration of each component is calculated and plotted with absolute precision. The software prevents use of components whose period of exposure to moisture values higher than 5% has expired. In this way, the expired components can be extracted quickly from the store and brought to the oven for the "baking".



ESD Tray for Reels 7" 8mm

You Can Place Any Component

Tray 15" With Microprocessors Trays



Tray 15" With THT Components Box

Tray 15" with Cardboard Reel

Quick Exit for Priority Reels





Exclusive advantage: no need to set up in advance the positions

With ISM Ultra flex 3600 you don't need to pre-set the height of the inner positions to stock the components.

Maximum flexibility: all heights combinations

Heights configuration practically unlimited. Every tray has a range from a minimum height of 8mm to a maximal height of 88mm. The machine is able to dynamically manage the subdivision of the interior spaces just as occurs with a hard disk.

New ESD 7" tray: multiuse and with double storage capacity

Multifunctional

Not only storage of JEDEC trays, but also of any other material and component that suits to its measures. It doubles the storage capacity, because it’s able to handle the double reel, for a total of 3.624 positions as 7" reels with 8mm height regards. If you don’t want to manage the selection of the reel output, the machine can be used with a single reel per tray.

Patented Fast Exit: loads and unloads up to 54 reels simultaneously

Fast Exit: ultra-fast exit system and extraction of the reels in a record time. It loads and unloads up to 54 reels simultaneously (multi-reel management).

Fast Exit: to extract the reel also during the loading / unloading phase

The multiple exit Fast Exit allows great flexibility of management. For example, when, in the load/unload stage, a reel is urgently needed and there is no time to wait for the operation to be finished.

The warehouse can interrupt the load/unload operation, provide with priority the component urgently needed, and then continue again with the load/unload.

Humidity control module Plug and Play.

Like all ISM models, also ISM Ultra Flex 3600 can be equipped with the module for humidity control. The warehouse environment is always under control. Moreover, the humidity level is constantly below 5%.

Fast Exit: to extract the reel also during the loading / unloading phase

Accurate calculation of the "Floor Life"

Thanks to the ISM software, the expiration of each component is calculated and plotted with absolute precision. The software prevents to use components whose exposure period to humidity values higher than 5%. has expired. In this way, the expired components can be quickly extracted from the warehouse and brought to the oven for the baking.



Multy reel case to insert JEDEC trays, bags etc.

Multy Reel Case to Insert JEDEC Trays, Bags etc.

Double Reel Management by Mobile Computer



Double Reel Management by Barcode Reader

Tray 15" for Reels, SMD & THT Components

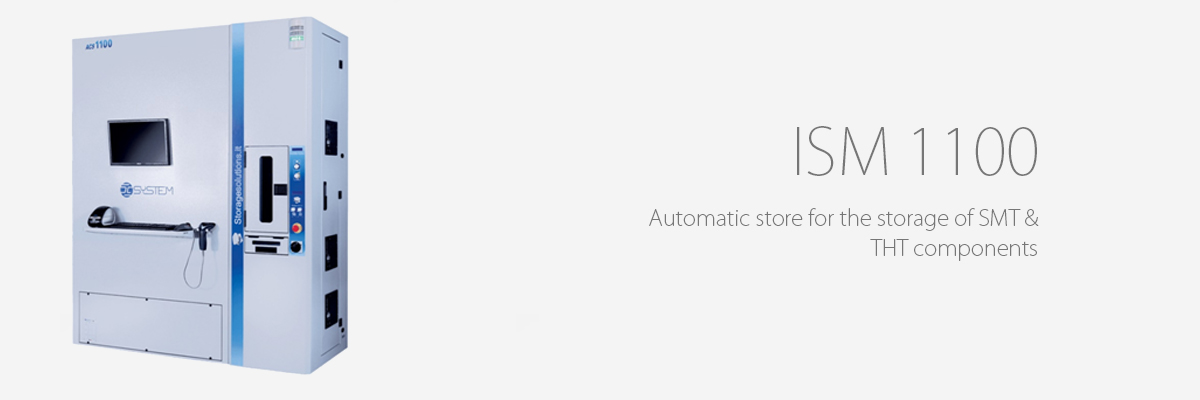

Automatic store for the storage of SMT and THT components

Large capacity, small encumbrance. High load capacity: up to 1100 reels. Only 173 cm wide and 92 deep. The perfect balance between high performance and ultra compact size.

For those with limited space but want more speed.

Ideal for small spaces, it speeds up store management time.

Patented Multi-output: charge and discharge up to 27 reels simultaneously.

Fast exit: exit system and ultra-fast extraction of reels in record time. Upload and download: up to 27 reels simultaneously.

PFast exit: to extract the rolls also during the loading / unloading stage.

PThe multiple output Fast Exit allows great flexibility of management. For example, when, in the process of loading / unloading, one urgently needs a reel and has no time to wait for the operation terms.

PThe store can interrupt the loading / unloading operation, providing priority component of which one is in urgent need, and then continue again with the loading / unloading stage.

Humidity control module plug and play.

Like all ISM models, ISM 1100 can also be equipped with the humidity control module. The storage environment is always under control and the moisture level is constantly below 5%.

Accurate calculation of the "Floor Life"

Thanks to the ISM software, the expiration of each component is calculated and plotted with absolute precision. The software prevents use of components whose period of exposure to moisture values higher than 5% has expired. In this way, the expired components can be extracted quickly from the store and brought to the oven for the "baking".



Quick Exit for Priority Reels

ESD Tray for Reels 7" 8mm

You Can Place Any Component

Patented Battery for Quick Loading / Unloading

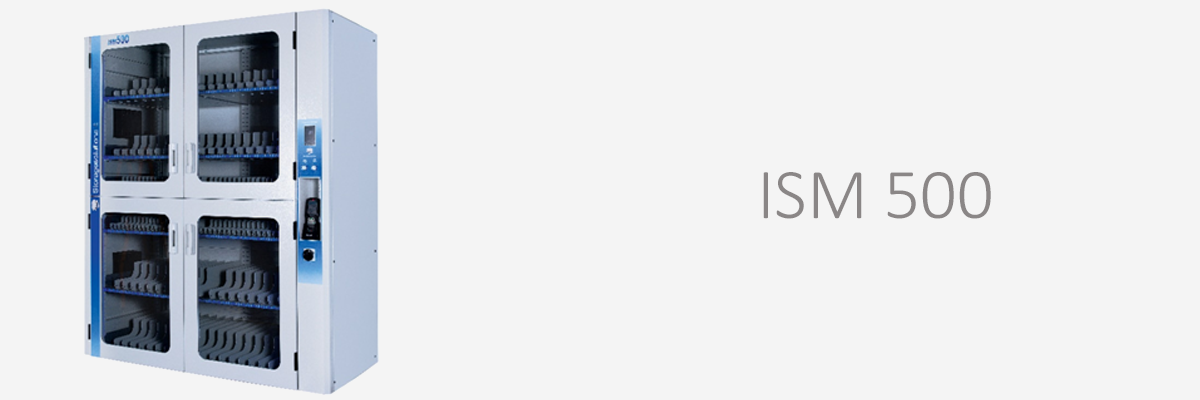

ISM 500

Dehumidified small dynamic cabinet for storage of the most varied types of components

Wide variety of storage.

IMS 500 can store coils, microprocessors trays, SMT and PTH sticks, frames, stencil plates and many other materials.

Wide selection of positions.

Up to 640 different positions for 7/13/15 inch reels.

Zero picking errors.

Three LED light signals indicate the exact location of the components to be extracted. A PDA reader indicates the component code, to avoid errors in the picking phase.

Dynamic storage, no waste.

The components do not have a fixed and determined position, but can be loaded at any free space available. In this way there is a dynamic management of positions and the store always reaches its maximum capacity, without waste of space.

High security lock. On demand it is possible to apply electronic locks that allow access to components to authorized persons only.

Dynamic storage, no waste.

The components do not have a fixed and determined position, but can be loaded at any free space available. In this way there is a dynamic management of positions and the store always reaches its maximum capacity, without waste of space.

High security lock. On demand it is possible to apply electronic locks that allow access to components to authorized persons only.

Humidity control module plug and play.

Like all ISM models, ISM 500 can also be equipped with the humidity control module. The storage environment is always under control and the moisture level is constantly below 5%.

Accurate calculation of the "Floor Life"

Thanks to the ISM software, the expiration of each component is calculated and plotted with absolute precision. The software prevents use of components whose period of exposure to moisture values higher than 5% has expired. In this way, the expired components can be extracted quickly from the store and brought to the oven for the "baking".



Dynamic Management with PDA

Positions with Configurable Separators
