Shenzhen JT Automation Equipment Co., Ltd. was founded on 27th July, 2004 with registered capital of 60 million Yuan. Self-development, production, operation: first, Electronic assembly machine and other associated equipment, including lead-free wave soldering, lead-free reflow soldering, 3D/2D vision inspection equipment, dispenser, rework station, loading and unloading machines and other products, which are necessary equipments for circuit board assembly line in the consumer electronics, communications, automotive electronics, aerospace, defense electronics and other fields; Second, solar photovoltaic equipment, including all necessary main production equipments for solar cell production line.



Available Models:

  • RS 600II (6 ZONE REFLOW – AIR CONFIGURATION)
  • RS 600II-N (6 ZONE RELOW – N2 CONFIGURATION)
  • RS 800II (8 ZONE REFLOW – AIR CONFIGURATION)
  • RS 800II-N (8 ZONE RELOW – N2 CONFIGURATION)
  • RS 1000II (10 ZONE REFLOW – AIR CONFIGURATION)
  • RS 1000II-N (10 ZONE REFLOW – NITROGEN CONFIGURATION)

Key Features:-

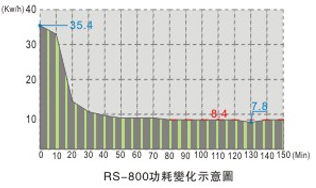

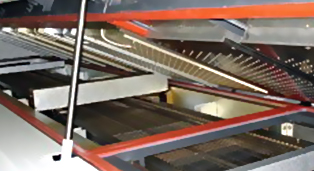

Low Power Consumption due to large aluminum alloy heat Plates, Low Carbon Emission, and Independent Air Velocity Control.

New cooling configuration to make the filtered or reclaimed air back to oven chamber. it reduced the thermal loss as well as better flux reclamation. Advanced flux management and cooling system on N2 ovens with dual independent heat exchangers for maximum cooling effect. It also includes external water chillers for (N2) oven.

Longer maintenance interval for oven chamber

Air Oven – 55 Day/Time

N2 Oven – 35 Day/Time

Above values are average values, the actual values may have deviation due to composition of solder paste, amount of usage and throughput. Four ways auto air circulation ensures most efficient heating, preventing instability and quick reaction time to various heating requirements.

Windows 7 operating system, simple English and Chinese interface onscreen alternative is available. Intelligent Diagnosis System has the function of trouble remind, Alarm, List-Out, Report Saving All production data will be backup automatically and easily for ISO 9000 management.

Digital Control System adopted with PLC + Modular Circuit ensures stabilize and accurate of repetitive precision. Temperature Monitoring and control system to check each zone temperature every second.

The rail is dealt with hardened process to make it more stable The conveyor pin chain adopted with singe Pin-plate design

The Longer heating zones are able to get high production Efficiency, better profile and hence throughput.

Specifications


  600 II/ RS 600 II N RS 800 II/ RS 800 II N RS 1000 II/ RS 1000 II N
Dimensions (mm) 4225x1320x1490 4225x1320x1490 6160X1320X1490mm
Weigh 1850KG-1950KG 2300KG-2400KG 2615-2700KG
Number of Heating Zone Up 6 / Bottom 6 Up 8 / Bottom 8 Up 10 / Bottom 10
Length of Heating zone 2310mm 3110mm 3891mm
Number of cooling Zones 1 Upto 2 Upto 2
Length of Cooling Zones 440mm 800mm
Exhaust Volume 10 m3 /min. x 2 exhausts
Temperature Control Precision ± 1,0 °C
Temperature Deviation on PCB ± 1,5 °C
Range of PCB Width 400mm (option Up to 460mm)
Component Clearance Top 30 mm / Bottom 25 mm
Conveyor height 900 ± 20 mm
Cooling Method A) Air oven: forced air
B) Nitrogen oven: water chiller
